HASEGAWA ATTRITION DISC MILL – 50 HP (#9553)

orCall 216-831-8485

Description

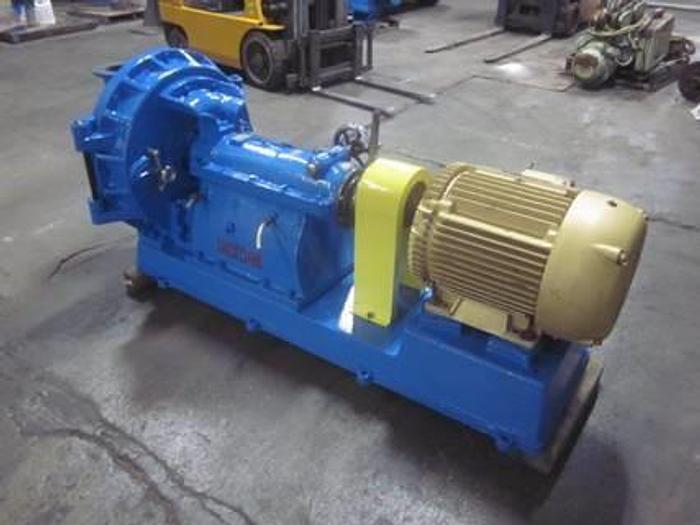

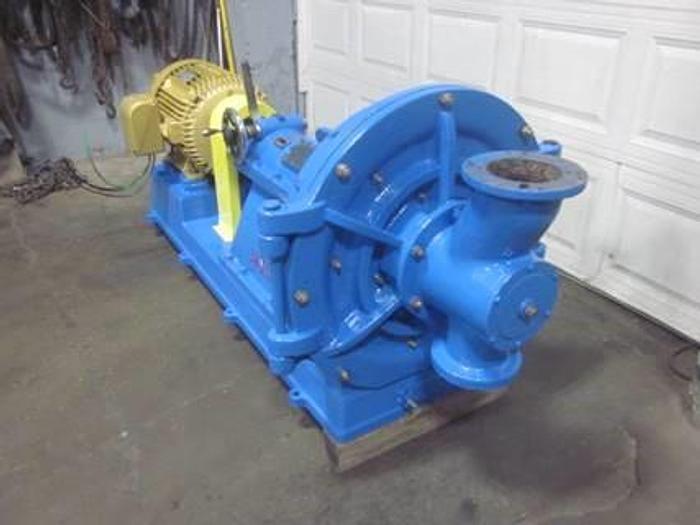

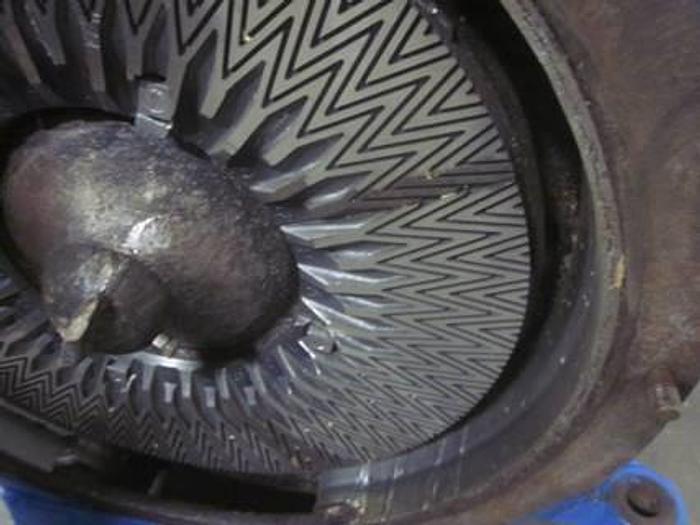

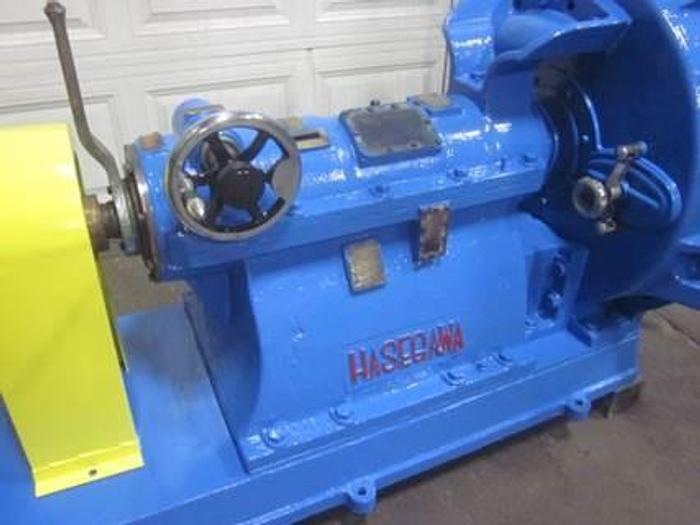

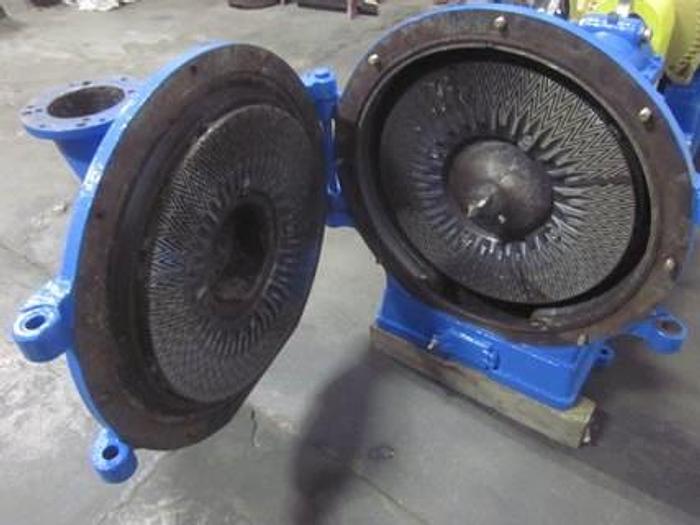

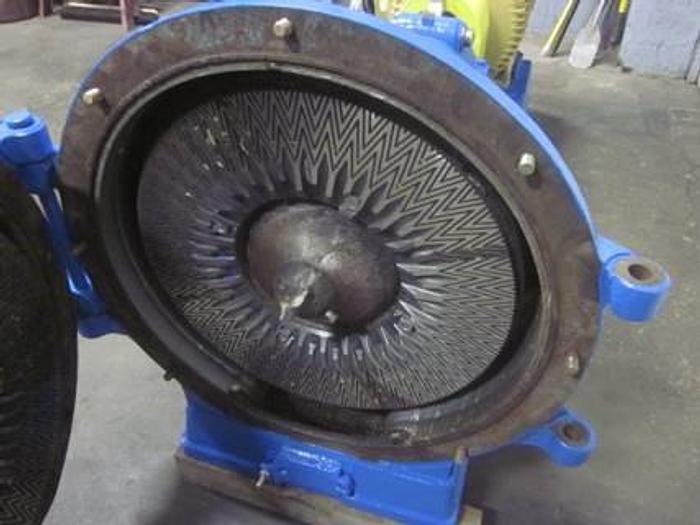

1 – used Hasegawa Refiner Deflaker Attriton Disc Mill. Manufactured in Japan. Approx. 25 in. inside chamber with lining and approx. 22.5 in. disc. One stationary, one rotating, both with bolted segments. 50 HP 230/460V, 1775 RPM direct drive motor. Rotating disc has course clearance adjustment and fine adjustment. Inlet is 6 in. round flanged with stainless steel feed hopper, approx. 12 in. x 12 in. feeds inside chamber center. Discharges out of the bottom chamber. Two inspection plates on back side of grinding chamber. F.O.B. – LOCATION

Specifications

ManufacturerHasegawa
ConditionUsed
Stock Number9553
Size (smallest to largest)8.0
