40 GALLON ROSS DOUBLE HELICAL MIXER/REACTOR – S/S – 35 PSI – JACKETED

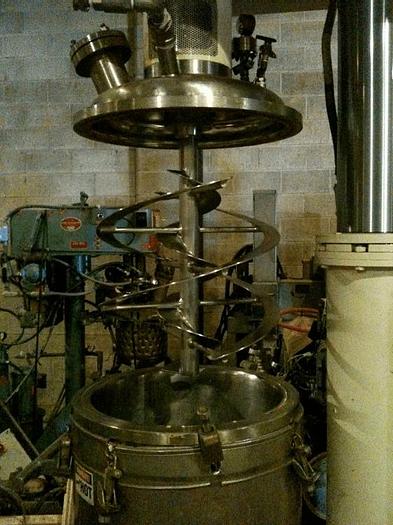

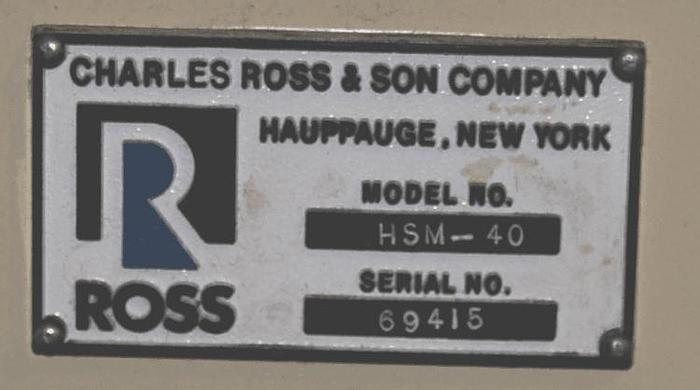

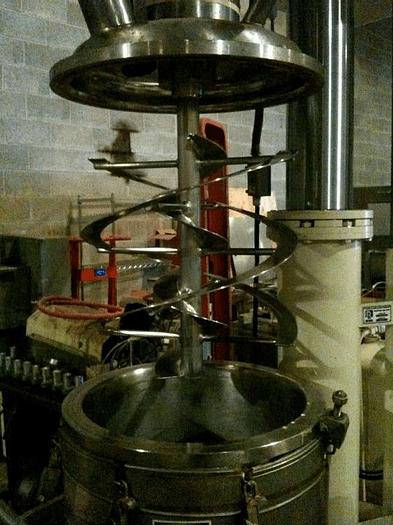

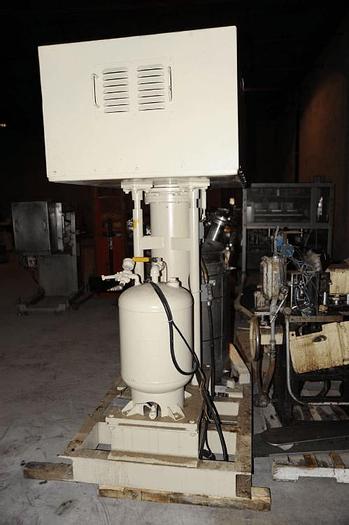

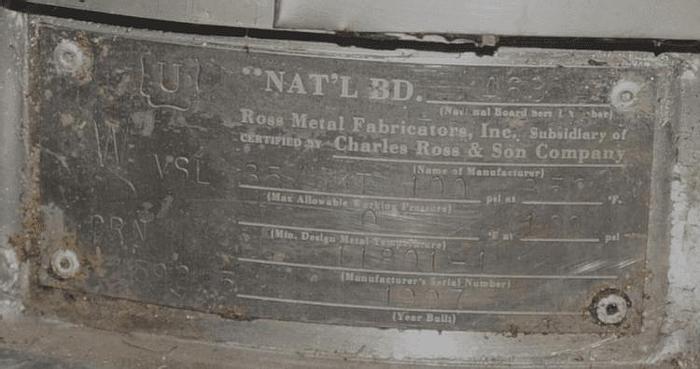

1 - used approx. 40 gallon Ross Vacuum Double Helical Mixer/Reactor, model HSM-40. With air/oil lift mechanism to raise and lower for changing mix cans/cleaning. Designed for operation under vacuum and a positive pressure of 35 psi @ 350 deg. F. Jacket maximum allowable working pressure 100 psi @ 350 deg. F. Minimum design metal temperature 0 deg. F @ 100 psi. Ross metal fabricators S/N 11801-1 with National Board Code Stamp 463, CRN 15925. Stainless steel contact parts. Jacketed mix can with provision for thermocouple. Insulated with sheathing. Explosion proof motor is 3/60/575V. No controls.

Mixer dimensions: 43" W  X 68" L X 91" H lowered position

Tank ID is about 23’’ and about 27.5’’ Deep
