NEW - 35 CU. FT. RIBBON BLENDER – S/S – 15 HP
1 - New 35 Cubic Foot Working Capacity Stainless Steel Double Ribbon Blender. Features: 304 Stainless Steel Construction, (mirror finish ribbons) pneumatic flap discharge, controls, and Teflon air seals. Overall Capacity: 1286 Litres. Effective Capacity: 1000L Trough Measurements: 1500mm Length x 900mm Width x 1050mm Depth. Floor to Discharge: 600mm (or specify) Overall Dimensions: 2400mm Length x 1320mm Width x 2187mm Height, Weight 700Kg. Electrics: 15HP Motor, 3Ph/60Hz/220Volts, 11Kw, up to 46 RPM. Radius 450mm. Delivery: Approx 8-10 weeks from receipt of 65% deposit.(balance prior to shipment from factory) Selling Price: FOB Toronto, Canada

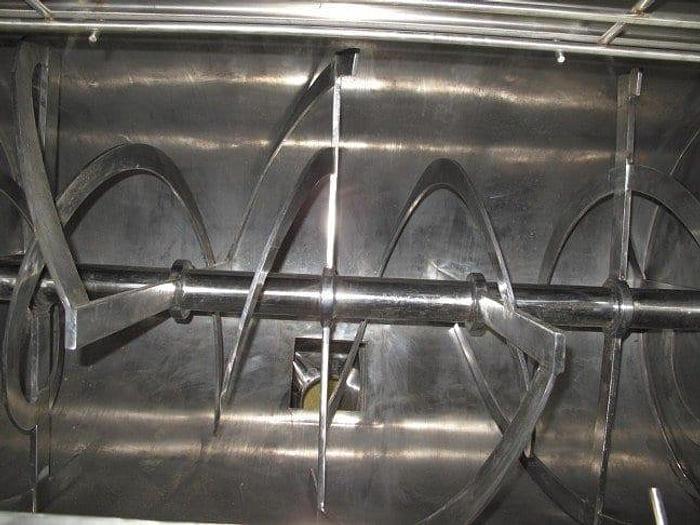

Description: Consists of U-Shape tank, spiral and drive parts. The spiral is dual structure. Outer spiral makes material move from the sides to the center of the tank and the inner screw conveyor the material from the center to the sides to get the convective mixing.
Our DP series Ribbon mixer can mix many kinds material especially for the powder and granular which with stick or cohesion character, or add a little liquid and paste material into powder and granular material. The mixture effect is high. The cover of the tank can be made as open in order to cleaning and change parts easily.

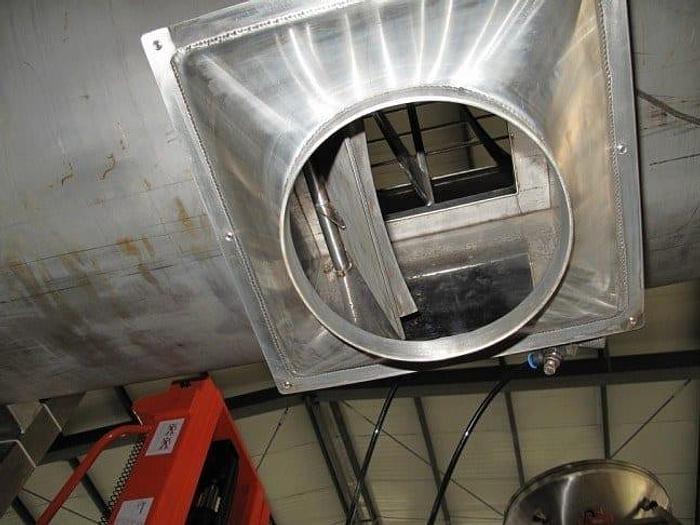

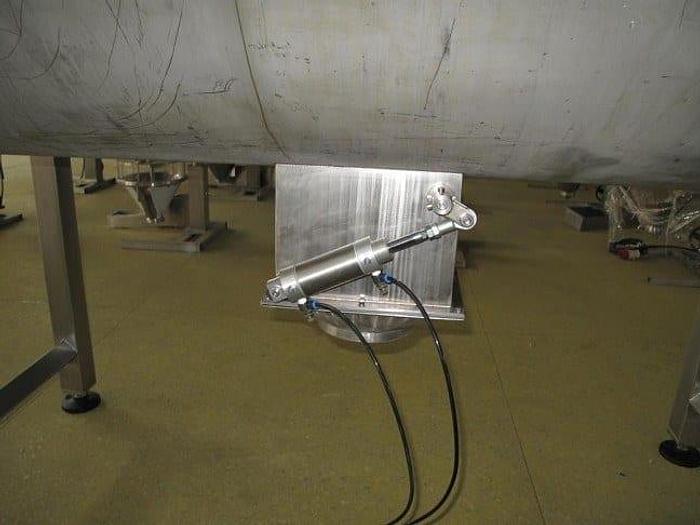

Main features: Single shaft with dual spiral symmetry circle structure. The top cover of the U Shape tank has the entrance for material. It can be also designed with spray or add liquid device according the customer’s needs. Inside the tank there equipped the axes rotor which consist of, cores support and spiral ribbon. Under the bottom of the tank, there has a flap dome valve (pneumatic center) The valve is arc design that assure no material deposit and without no dead angle when mixing. Reliable regulate seal prohibit leakage between the frequent close and open. The disconnected ribbon of the mixer can make the material mixed with more high speed and uniformity in short time. This mixer also can be designed with the function to keep cold or heat. Add one layer outside the tank and put into medium into the interlayer to get the mixing material cold or heat. Usually use water for cool and hot steam or use electrical for heat
