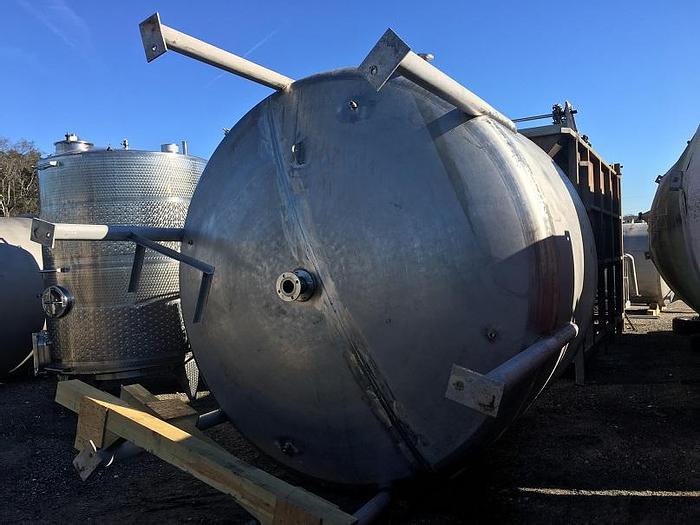

3,300 GALLON MIX TANK – 5 HP – T-304 S/S (#9714)

orCall 216-831-8485

Description

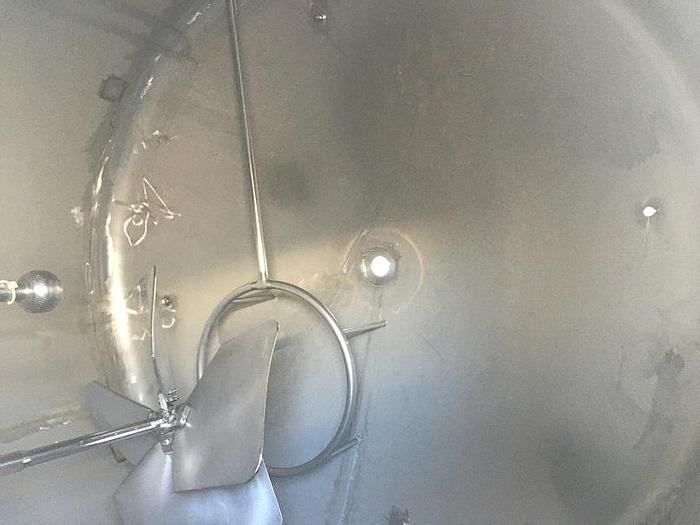

1 – Used approximately 3300 gallon 304 stainless steel vertical mix tank. 120″ diameter X 68″ high straight side. Equipped with 4 blade agitator driven by Lightnin series 10 drive model 16S5, Ratio 17.31, output RPM 68, powered by 5 HP 3/60/230-460 volt motor. Welded dished heads. Top fittings: 22″ X 22″ square manway with pneumatic cylinder for opening and closing. (1) 2″ NPT in center to the spray-ball, (2) 3″, (1) 6″ and (1) 8″. 3″ center bottom drain. 1″ side bottom inlet to sparge ring. Mounted on (6) stainless steel legs, giving 28″ clearance to floor. FOB – LOCATION

Specifications

ConditionUsed
Stock Number9714
Size (smallest to largest)3300.0
