4,000 GALLON MIX TANK – 2 HP – T-304 S/S (#9715)

orCall 216-831-8485

Description

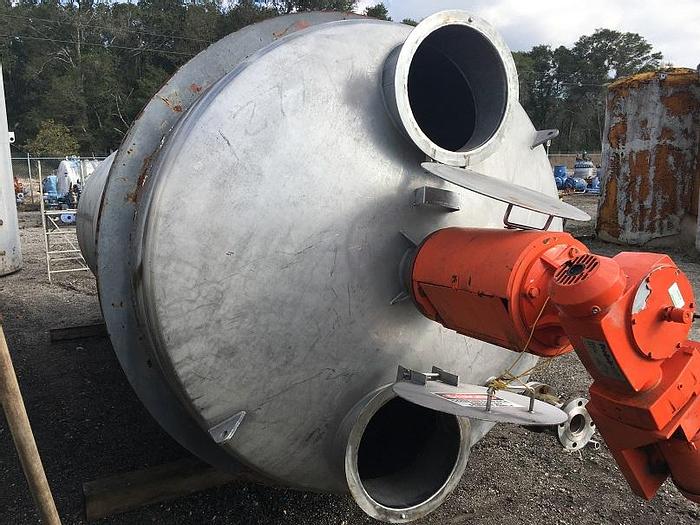

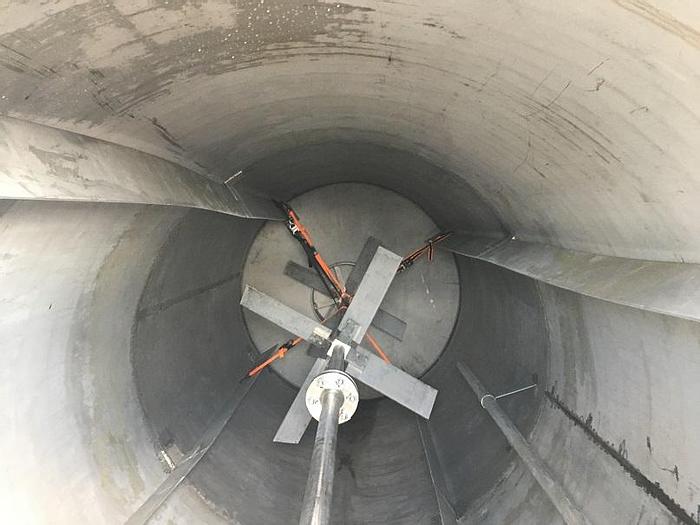

1 – used approx. 4,000 gallon Ward Tank Corp. T-304 stainless steel vertical mix tank. 6′ diameter X 16′-1″ high straight side. S/N BW-667-A. Welded dished heads. Top fittings: (2) 18″ manways, (2) 3″ inlets. 3″ center bottom drain. (1) 2″ and (1) 3″ side bottom outlets. Equipped with dual flight (4) pitched blade agitator, driven through a ProQuip model YE-50 drive rated 48.99 RATIO, powered by 2HP 3/60/230-460 volt motor, 1725 RPM. Has (4) internal baffles and a diptube. Mounted from a carbon steel mounting ring that is approximately 17″ down from the top head.

Specifications

ConditionUsed
Stock Number9715
Size (smallest to largest)4000.0
