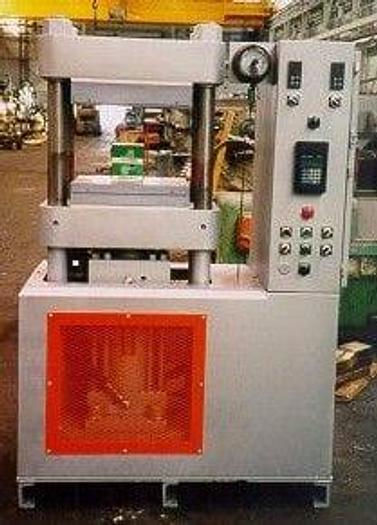

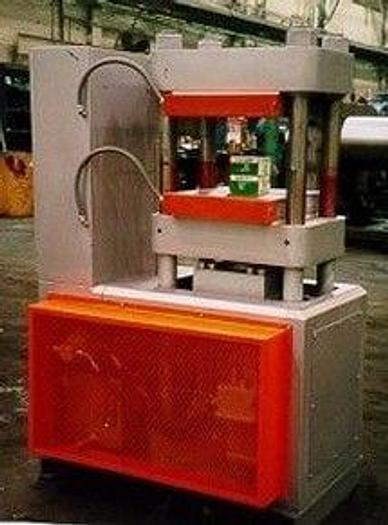

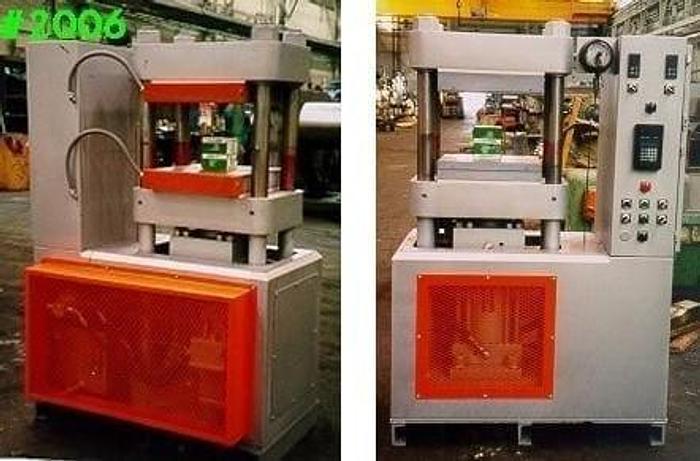

100 TON 4 POST HYDRAULIC PRESS – 18 in. X 18 in. – NEW (#2006)

Sold

Description

1 – NEW Model RCM 100-18-18 cabinet style self-contained hydraulic press. 8″ dia., 12″ stroke heavy duty ram @ 4000 PSI= 100 Ton. 3″ dia. strain rods. 6″ thick solid steel cross head. 6″ thick solid steel bolster table fully guided via 360 deg. bronze guide bushings. Standard press to be fitted with (2) two 2″x18″x18″ 480/3/60 electrically heated platens with 0-800 deg. F temperature controllers. Each platen to have (10) ten 850 shaded watt density heaters. Platens capable of ambient to 450 deg. F operating temperature in 50/60 minutes. Single 13″ daylight opening between platens 19″ left-right between strain rods. 9½” front-back between strain rods. Self-contained Vickers 4000 PSI hydraulic unit is a 10 gallon Reservoir, mounted within confines of cabinet base. Hydraulic unit is driven by 5 HP, 220/440/3/60 motor using a 15 GPM pump. Ram speed is 69″/minute. Operator’s Control Panel to consist of: 0-800 deg. platen temperature controllers Dual anti-tie down palm buttons for close Single push button for open. Adjustable hydraulic control switch for 5-100 ton operation. Allen Bradley Micrologix programmable controller. Proface AGP 4300 HMI with Recipe management. Power Requirement: 240 : 480 Platens 2 @ 20/10 AMPS each 40.0 Amps @ 240 : 20.0 Amps @ 480 Hyd. Unit 5 HP drive motor 14.0 Amps @ 240 : 7.6 Amps @ 480 Control Voltage 120/1/60 2.0 Amps @ 240 : 1.0 Amps @ 480 TOTAL 56.0 Amps @ 240 : 28.6 Amps @480 Overall dimensions: 46″ left-right, 36″ deep, 47″ tall Approximate Weight: 6,900# SELLING PRICE WITH ONE YEAR WARRANTY OPTIONS: a) Each additional platen and temperature controller – add $5,885.00 b) NEW electrically heated 18″ x18 ” x3″ water cooled platens with valving for water cooled and air pressurized air purging – add $7,580.00 c) Mold work table with bronze guide rails mounted to front of press – $3190.00 d) Dual, sandwiched intermediate platen assembly, longer strain rods to render two (2) 6″ daylight openings, 1/2 Glastherm mounted on all four sides of each platen. Platens wired to separate temperature controllers, add – $12,750.00 e) Additional daylight opening over 13″ total add $120.00 per inch f) Power requirement for 240/3/60 upgrade sizing of electrics, ADD $3850.00 F.O.B. – N.E. OHIO LOCATION TERMS – 50% WITH ORDER TO BEGIN CONSTRUCTION 50% BALANCE DUE UPON COMPLETION OF CONSTRUCTION, PRIOR TO SHIPMENT. 12-14 week delivery from receipt of order and 50% deposit.Balance due upon completion prior to shipment.F.O.B. – N.E. OHIO LOCATION

Specifications

ModelRCM 100-18-18
ConditionUsed
Stock Number2006
Size (smallest to largest)100.0
