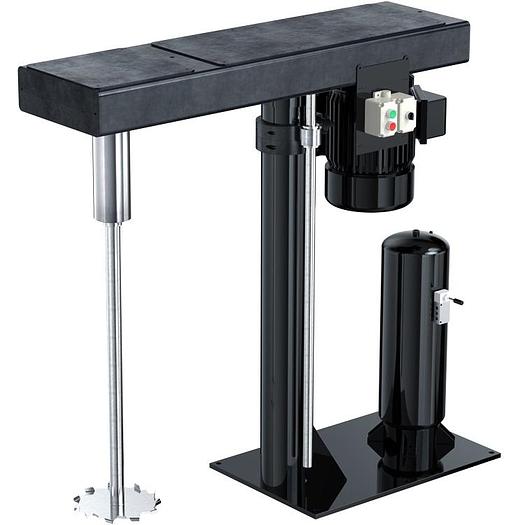

NEW 20 HP HIGH SPEED DISPERSER – XP MOTOR – AIR/OIL LIFT (#9555)

NEW 20 HP HIGH SPEED DISPERSER – XP LISTED – AIR/OIL LIFT Model: DP4200XBO Air Lift Requirement 80PSI@1CFM

Blade Attachment Bolt: 5/8/11

Container Brace

Enclosure Type: Cl1-Div1-GrC, D With Remote VFD & Local Control Box

Impeller Diameter 14 in Impeller Material 304SS Impeller Type Dispersion Blade Lift Height 48 in Lift Type Air over Oil Max Current 24 A Max Vessel Height 48 in Motor Type XP TEFC Mount Post Number of Impellers 1 Phase 3 RPM 140-1400 Shaft Attachment Integrated Shaft Diameter 2 in Shaft Length 61.5 in Shaft Material 316SS Speed Controller Yes Throat Depth 24 in Total Height Lowered 68in Total Height Raised 116 in Voltage 460 V

12" DBL, Fixed Lift Limit Switch, +12" Operating Travel (No Shroud)

APPROX. 5-7 weeks (SUBJECT TO CHANGE)
