50 GALLON JAYGO DOUBLE PLANETARY DISPERSER - S/S - VACUUM - JACKETED (#9826)

orCall 216-831-8485

Description

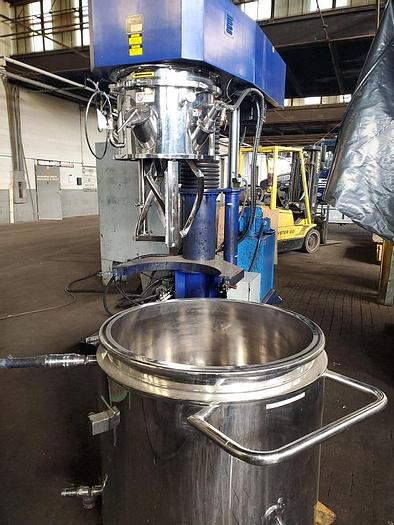

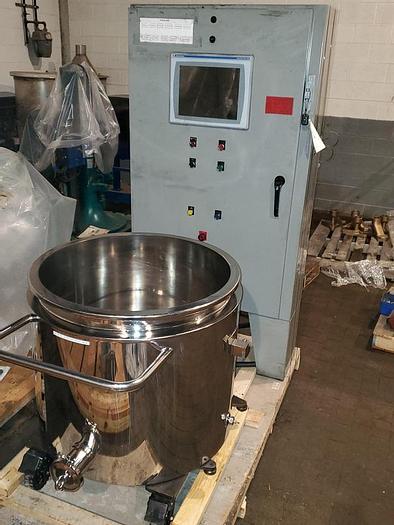

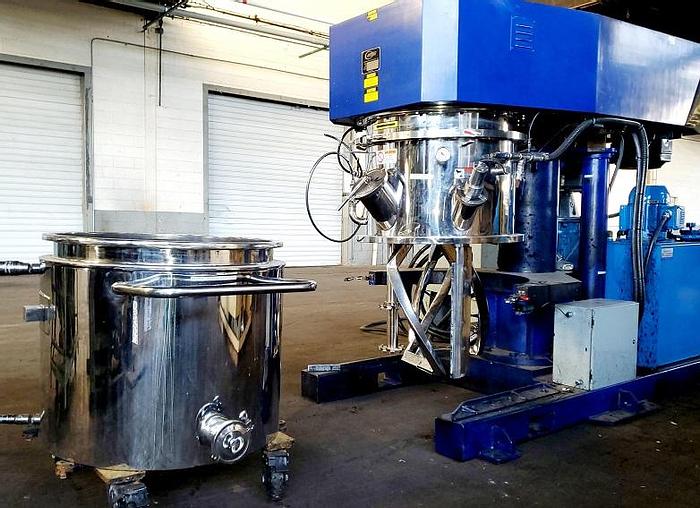

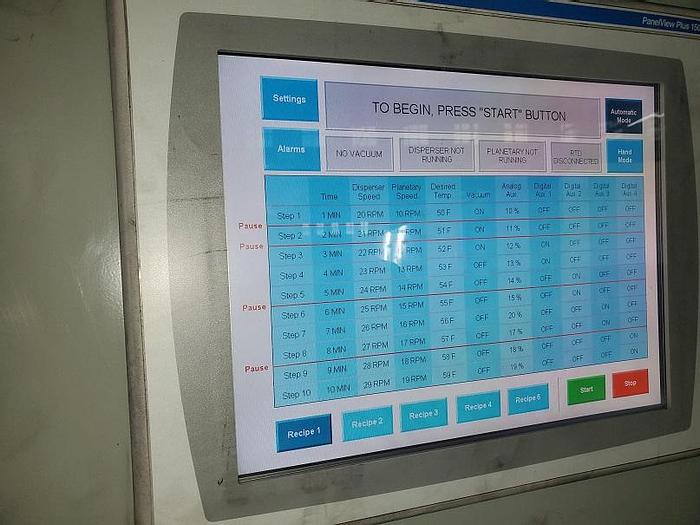

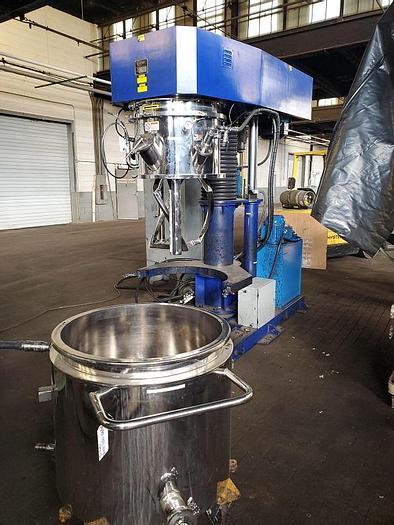

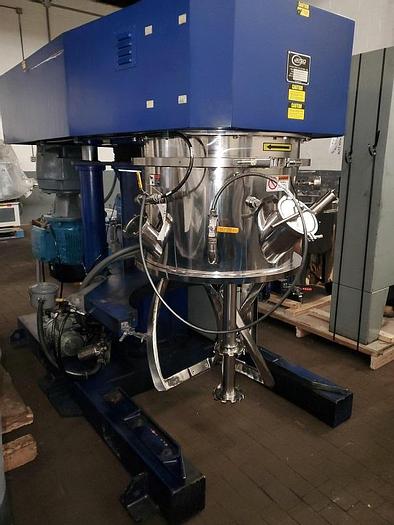

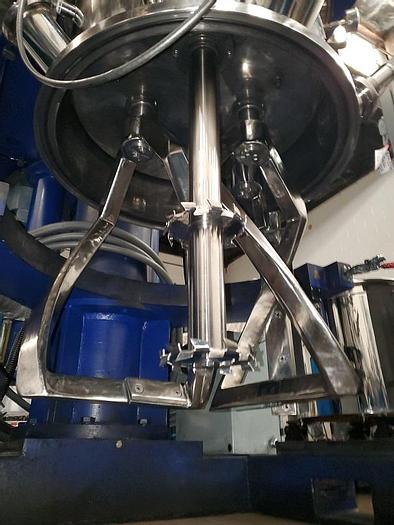

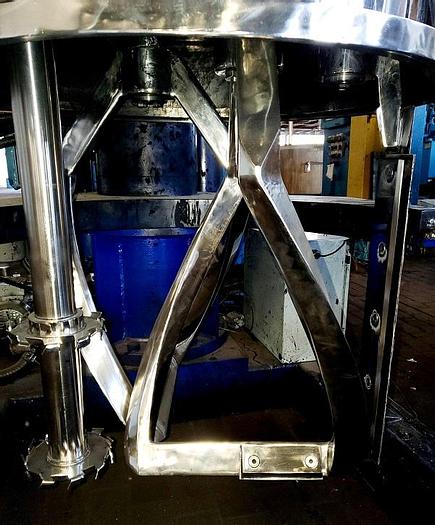

1 - used Jaygo Model TDPMD-200 Planetary Type Mixer, Manufactured in 2013. T-304 stainless steel (High Polish) bowl, jacketed, vacuum hood. 287 liter/75 gallon total capacity, 200 liter/20 to 50 gallon working capacity. Interior rated for Atmospheric to Vacuum, Heating Jacket 14.9 psig at 350 F, Dual High Viscosity Planetary Blades powered by 15 HP motor. Planetary Blade Speed variable between 7.5 to 75 RPM, Disperser Shaft with dual Sawtooth Blades driven by 20 HP motor, Disperser Blade Speed variable between 180 to 1800 RPM. Side Scraper Blade with Teflon insert. Vacuum gauge in hood, jacket connections in bowl, multiple sight port and work light mounted in hood.  Bowl Interior Dimensions are 29 1/2" diameter x 26 3/4" deep, caster wheels on bow. With side/bottom flush mount valve, Hydro Air Hughes Hydraulic Lift Package Model HA63127 with 3 Kw/2 hp motor. Gardner Denver Vacuum Pump with filter. Allen Bradley Control Panel with PanelView 1500 PLC featuring touch-screen technology. Push button controls for Machine Light, Raise Mix Head, Lower Mix Head, Jog, Jog Safety and Emergency Stop, Frenic Multi Drive VFD's in panel for speed control of mixing tools, operating at 460 volt, 3 phase, 60 hertz. Overall Dimensions of Mixer in lowered position--90"long x 76" high x 58" wide.  Test Run Video Available. EX-WORKS - LOCATON


Specifications

ManufacturerJaygo
ModelTD PMD-200
Year2013
ConditionUsed
Serial NumberJob Number 113001
Stock Number9826
