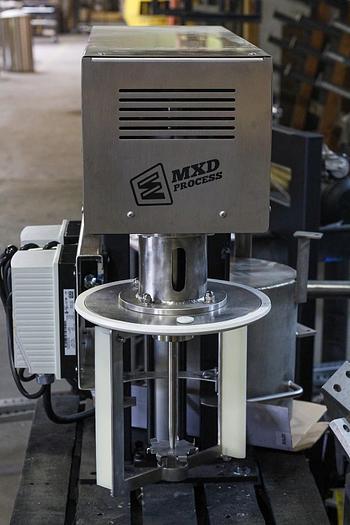

NEW 10 GALLON DUAL SHAFT MIXER - S/S - VACUUM JACKETED (#9835)

orCall 216-831-8485

Description

10 Gal Dual Shaft Mixer, ASME, FV, Dimple Jacket Tank (ASME CODE STAMPED)

• Full Capacity: 15 Gal

• Air Lift

• Safety Limit Switches - Lift and Vessel

• Internal Rating: Full Vacuum, High Performance PTFE Lip Seals Installed on Shafts w/ Nitrile O-rings

• Mix Vessel with Flat Bottom, Casters, Fork Truck Channels

• Dimple Jacket: 3.25" Dimple Spacing, 304 Stainless Steel, 12" Jacket Height (as applicable), 1-1/2" NPT Nipple Inlet/Outlet(s), Designed for 15PSI @ 240°F, Surface Area = 682.0in^2, (2) Zone

• Vessel Locating and Locking Retainer

• 304SS Wetted Components w/ Ground Welds Interior, Welds Visible Exterior

• Digital Speed Controllers Included

• 2" 150# ANSI Flange in Shell at Bottom

• Lid w/ Vacuum Rated Seal - (2) 3" Triclamp Charge Port in Lid - 1" NPT Half Coupling in Lid


Anchor

• Motor: 3HP, TEFC, 460/3/60

• Gear: 14-139 RPM, High Efficiency Helical Bevel

• Shaft: Hardened Stainless for Seal Interface

• Control: Digital Control, with Membrane Inputs and RPM Readout, NEMA 4X

• Impeller: 304SS Tube Construction with Nylon Scraper Blades, Welds Visible


Disperser

• Motor: 5 Hp, TEFC, 460/3/60

• Shaft: Hardened Stainless for Seal Interface

• Control: Digital Control, with Membrane Inputs and RPM Readout, NEMA 4X

• Drive: V-Belt Turndown, 480-4800 RPM

• Blade: 4" DBL 304SS Dispersion Blade, Bolted and Removable


Payment Terms 50% With Order, Balance Prior To Ship

Specifications

ManufacturerMXD
ConditionNew
Stock Number9835
