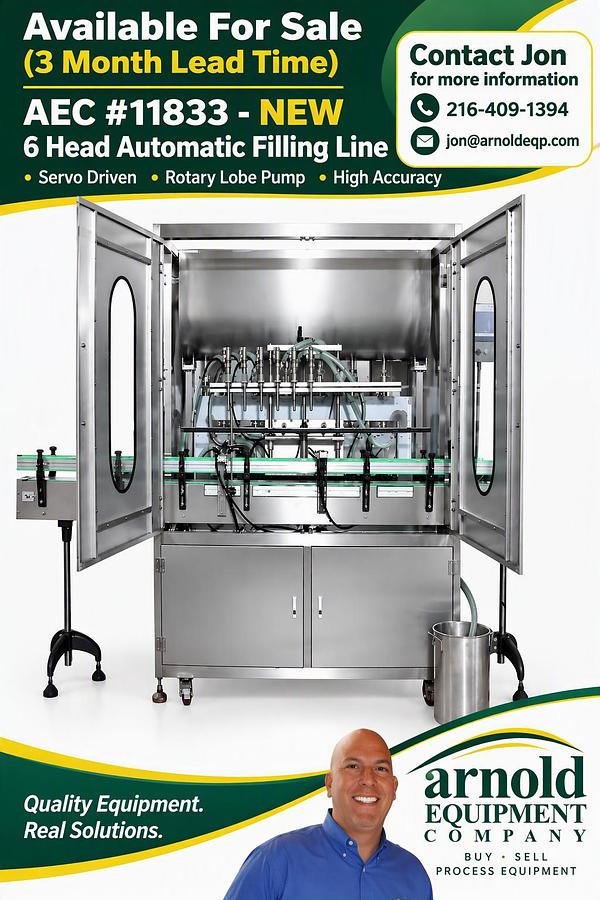

AUTOMATIC 6-HEAD SERVO ROTARY LOBE PUMP FILLING MACHINE

Number of Filling Heads: 6 heads. Standard design is based on 401# cans. The machine can also be customized according to the customer’s required production speed and container size.

Fill Volume Range: 0.3–169.1 fl oz (10–5000 mL)

Filing Speed: 40–60 cans/min, based on 6.8 fl oz (200.0 mL) bottles

Filling Accuracy: +/- 1%

Filling Temperature Range: 68 deg F - 194 deg. F (20.0 deg C - 90.0 deg. C)

Filling Method: Fill volume is controlled by pump speed and the number of pump rotations

Conveyor Length: 98.4 in (2.5 m)

Conveyor Height: 31.5 in (0.8 m)

Machine Dimensions: 98.4 in L × 39.4 in W × 55.1 in H

Net weight/Gross weight: 1,102 lb/1,323 lb

Power Supply: 208-230Vac,50/60Hz,2.25 kW

Features:

• Equipped with a no-bottle, no-fill function and automatic liquid-level control for feeding,

helping reduce equipment faults.

• The machine is controlled by PLC + touchscreen, making parameter adjustment easier

and more intuitive.

• The main machine frame and exterior are primarily made of 304 stainless steel.

• Product-contact parts, such as the product tank, are made of 304 stainless steel. 316

stainless steel is optional if required by the product. Other contact materials include

food-grade silicone and food-grade PVC.

• The filling nozzles are made of 304 stainless steel. 316 stainless steel is optional if

required by the product. The nozzles are corrosion-resistant and meet GMP production

requirements.

• The feeding hose is made of PVC, with a temperature range of 14.0°F to 194.0°F (-

10.0°C to 90.0°C).

• Fill volume and filling speed can be easily adjusted and displayed through the

touchscreen. The machine has a clean and professional appearance.

• The machine offers strong compatibility. Different bottle shapes and sizes can be

adjusted quickly without changing parts, making it suitable for multi-product and multisize

production.

• Product tank capacity: 8,453.5 fl oz (250.0 L), supporting efficient and continuous

operation.

• The conveyor belt is made of POM, offering good wear resistance.

• An air compressor is required separately. Minimum air pressure requirement: 87.0 psi

(0.6 MPa).

• Widely used for filling low-viscosity, non-carbonated liquids such as milk, wine, drinking

water, tea beverages, soy sauce, liquor, vinegar, and other free-flowing liquids in the

food, beverage, pharmaceutical, and chemical industries.
