2000 Gallon Walker Vertical Jacketed Tank - S/S (#9847)

orCall 216-831-8485

Description

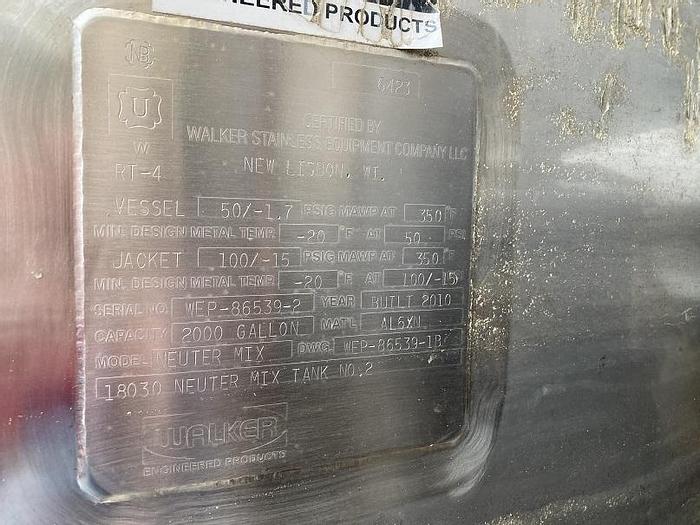

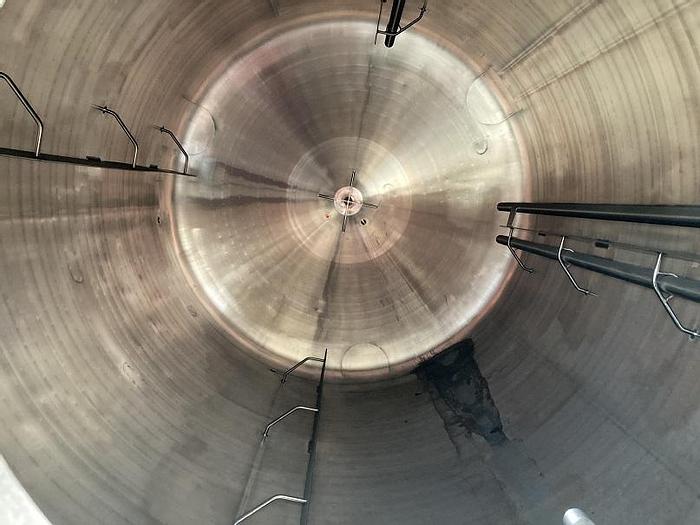

1 - Used Walker 2000 gallon AL6XN stainless steel vertical jacketed tank. 77.5" ID X 100" high straight side. Welded dished top, cone bottom. Internal rated 50/-1.7 PSIG @ -20 to 350 F. Jacket rated 100/-15 PSIG @ -20 to 350 F. Top fittings: 24" manway, (3) 4", (2) 2", (2) 3/4" for sprayballs, (2) 6", (1) 12" center agitator nozzle. (1) 1" threaded. 2" pad style center bottom drain. (1) 1" side outlet off the bottom outlet and (1) 1/2" threaded inlet for RTD at bottom outlet. 1" side bottom outlet. Unit has (1) bottom jacket zone and (2) side jacket zones. All jacket nozzles are 2". Equipped with (4) internal baffles and (3) diptubes. Interior has 2B finish. Unit is insulated and covered with stainless steel covering. Overall dimensions are: 13' from bottom outlet flange to top agitator flange. diameter: 81". NB# 6423, S/N WEP-86539-2. Built 2010.

Specifications

ManufacturerWalker
ModelAL6XN
Year2010
ConditionUsed
Serial NumberWEP-86539-2
Stock Number9847
Size (smallest to largest)2000.0
